Packaging roll to roll vacuum coating machine

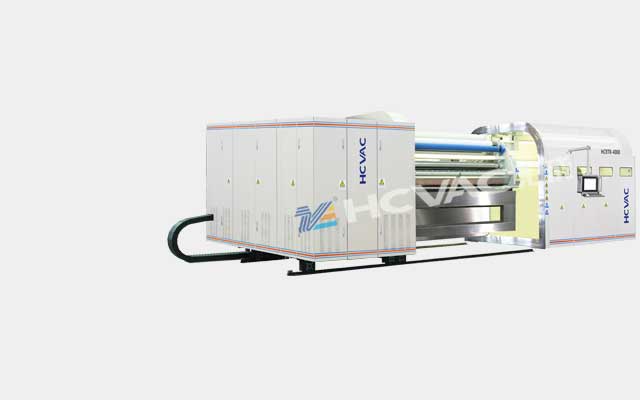

HCPAK series wound coating machine is a roll to roll metallization solution for aluminum barrier packaging applications. In industries with low profit margins, the highest production efficiency, coupled with excellent product performance, is the answer to future challenges.

Traditional aluminum coatings are deposited on a wide range of flexible substrates to enhance optical, protective and barrier properties. The hcpak series covers a width of 1100-3850mm, as well as all common plastic film and paper substrates. The maximum output is achieved at different speeds for the substrate with a width of more than 2500 mm, and the processing speed is increased by more than 25% compared with the traditional system.

It is used for plasma reactive deposition of alumina on flexible materials such as BOPP and pet. The barrier property and long-term stability of packaging material refined with alumina layer are improved by plasma reaction process, so as to obtain better permeability value. Compared with the traditional reactive deposition, the plasma reaction process provides a significant improvement, and the barrier performance and long-term stability of the packaging materials are improved combined with the minimum penetration value.

In addition to the measurable layer uniformity over the substrate width, the innovative evaporator arrangement and gas distribution provide significant results in the visible range, which are important for special optical applications.

Especially when it comes to flexibility, the hcpak + series sets the benchmark, and even if the system is primarily used for alumina coatings.

Product Advantage.

HCPAK series of packaging and winding vacuum coating machine includes the following key capabilities:
  • Uniformity

    Powerful plasma pretreatment improves barrier property

  • Simple

    Simplified operation and optimized design, easy to operate and maintain

  • Uniformity

    Optimized configuration of aluminum evaporator source, uniform coating

  • Stable

    The uptime is very long

  • Friendly

    Powerful machine friendly concepts and services

  • Flexible

    Adapt to individual requirements of substrate and application

Model HCPAK-1100
Wide in width 1100mm
Structure Single or multiple cavities
Roll diameter(mm) max.φ800
Winding speed 60~720m/min
Base material Pet, (b) OPP, CPP, HDPE, LDPE, PA, etc
Substrate thickness PET:8-35um; CPP:18-60um;BOPP PVC:15-60um
coating Aluminum, copper (hcpak + series can be plated AlOx)
Uniformity ±10%
Model HCPAK-1300
Wide in width 1300mm
Structure Single or multiple cavities
Roll diameter(mm) max.φ800
Winding speed 60~720m/min
Base material Pet, (b) OPP, CPP, HDPE, LDPE, PA, etc
Substrate thickness PET:8-35um; CPP:18-60um;BOPP PVC:15-60um
coating Aluminum, copper (hcpak + series can be plated AlOx)
Uniformity ±10%
Model HCPAK-1700
Wide in width 1700mm
Structure Single or multiple cavities
Roll diameter(mm) max.φ800
Winding speed 60~1000m/min
Base material Pet, (b) OPP, CPP, HDPE, LDPE, PA, etc
Substrate thickness PET:8-35um; CPP:18-60um;BOPP PVC:15-60um
coating Aluminum, copper (hcpak + series can be plated AlOx)
Uniformity ±10%
Model HCPAK-2200
Wide in width 2200mm
Structure Single or multiple cavities
Roll diameter(mm) max.φ800
Winding speed 60~1000m/min
Base material Pet, (b) OPP, CPP, HDPE, LDPE, PA, etc
Substrate thickness PET:8-35um; CPP:18-60um;BOPP PVC:15-60um
coating Aluminum, copper (hcpak + series can be plated AlOx)
Uniformity ±10%
Model HCPAK-2500
Wide in width 2500mm
Structure Single or multiple cavities
Roll diameter(mm) max.φ1000
Winding speed 60~1000m/min
Base material Pet, (b) OPP, CPP, HDPE, LDPE, PA, etc
Substrate thickness PET:8-35um; CPP:18-60um;BOPP PVC:15-60um
coating Aluminum, copper (hcpak + series can be plated AlOx)
Uniformity ±10%
Model HCPAK-3850
Wide in width 3850mm
Structure Single or multiple cavities
Roll diameter(mm) max.φ1000
Winding speed 60~1000m/min
Base material Pet, (b) OPP, CPP, HDPE, LDPE, PA, etc
Substrate thickness PET:8-35um; CPP:18-60um;BOPP PVC:15-60um
coating Aluminum, copper (hcpak + series can be plated AlOx)
Uniformity ±10%
