vacuum coating machine vacuum coating machine

Solution

Instrument screen Case
PVD coating machine
Target

Automobile display screen and related supporting manufacturers, optical coating processing enterprises

Cores

Provide PVD coating equipment and technology for enterprises

According to the characteristics of Automobile display screen industry products and growing customer demand, we have developed a variety of equipment technology and coating process

Solutions and advantages.

In addition to the antireflection effect, the automobile instrument panel also needs the anti fingerprint effect, so as to maintain the cleanliness of the display screen in the process of countless touch.

AF anti fingerprint (anti fingerprint), general SiO2 + AF materials (don, M4, Dow Corning AF materials), generally adopt vacuum evaporation coating method.

Principle: according to the lotus leaf principle, AF antifouling and fingerprint proof glass is coated with a layer of nano chemical material on the outer surface of the glass to minimize the surface tension of the glass, reduce the contact area between dust and glass surface by 90%, so that it has strong hydrophobic, anti oil stain and anti fingerprint ability, and keeps the glass panel of the video screen bright and clean for a long time.

Applicable materials: all kinds of glass or plexiglass PC, PMMA, pet

Antireflection antireflection (AR) can improve the transmittance of glass (screen) and reduce the reflectivity of glass (screen) to achieve the purpose of antireflection. There are many materials to choose from. Generally, high and low refractive index materials are used for cross stack plating. Vacuum evaporation plating or magnetron sputtering plating can be used.

Principle: when the light is emitted from the light sparse material to the light dense material, the reflected light will have half wave loss. After AR film is coated on the glass, the optical path difference of the reflected light on the surface is exactly half the wavelength different from that of the front surface of the film. The reflected light of the two surfaces before and after the film cancels, which is equivalent to increasing the energy of the transmitted light. Moreover, both sides of the glass can be coated at the same time to reduce the reflection effect of both sides of the glass.

Applicable substrate: glass, acrylic (PMMA), PC, CR39 and other Plexiglas.

recommended equipment.

PVD COATING MACHINE

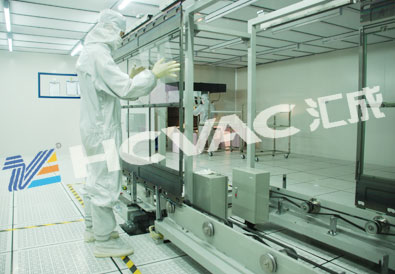

Project site.

PVD Equipment

Inline coating

PVD Equipment

Vacuum coating

PVD Equipment

PVD coating
